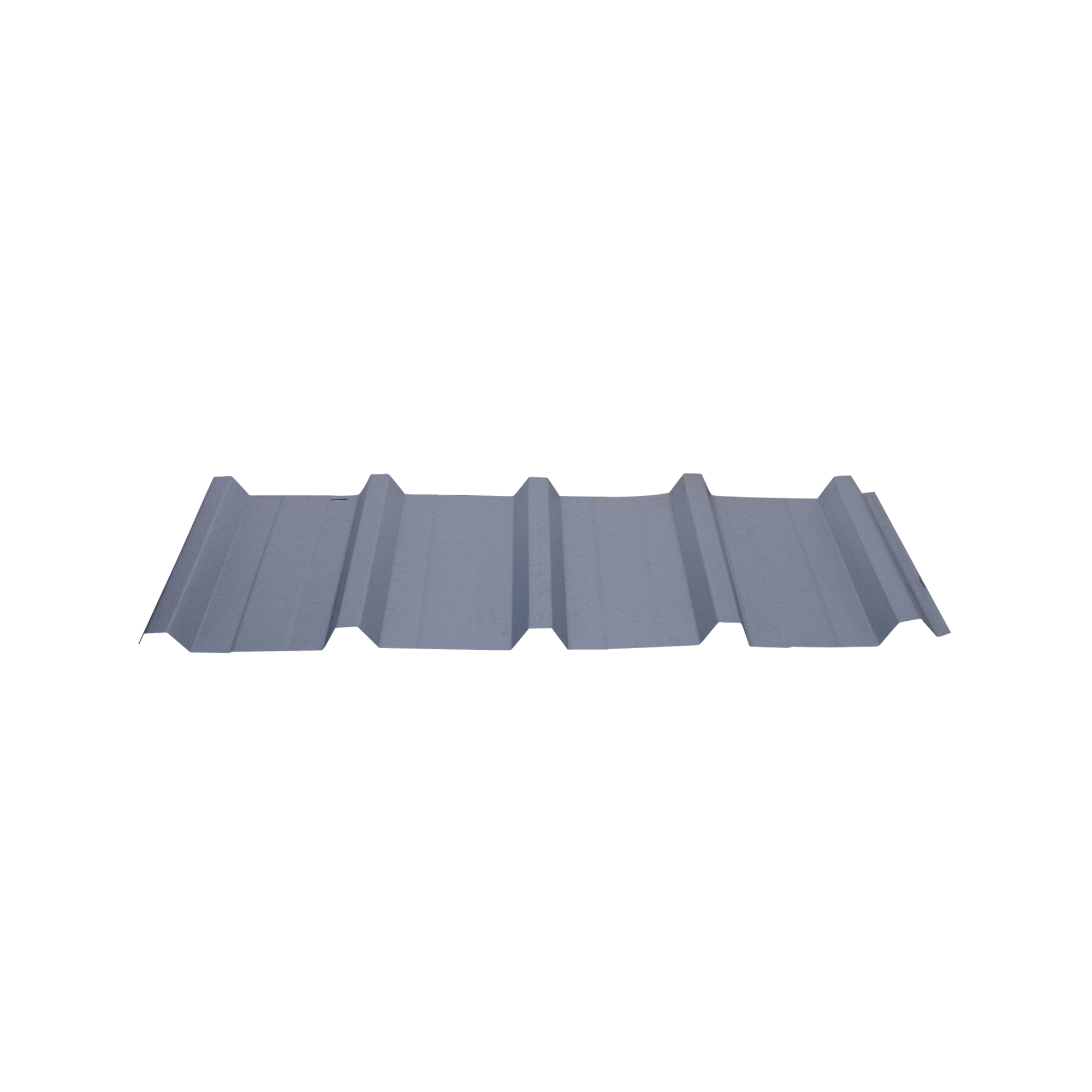

U-DEK 762
The U-DEK profile is a trapezoidal roof, roll-formed with a single flute on the valley of the roofing sheet, economically ideal for industrial and commercial use.
Specifications
Feeding width |
: 940mm. |
|---|---|
Effective cover width |
: 740 mm. |
Rib height |
: 29 mm |
Tensile strength |
: G550 |
Coating class |
: AZ 150 (Korea) / AZ 70 (China) |
Recommended total coated thickness |
: 0.47 mm and 0.40 mm. |
Recommended screw spec |
: 55mm (steel frame) |
Maximum transportable length |
: 20ft – 40ft depending on length of the transport trailer. |

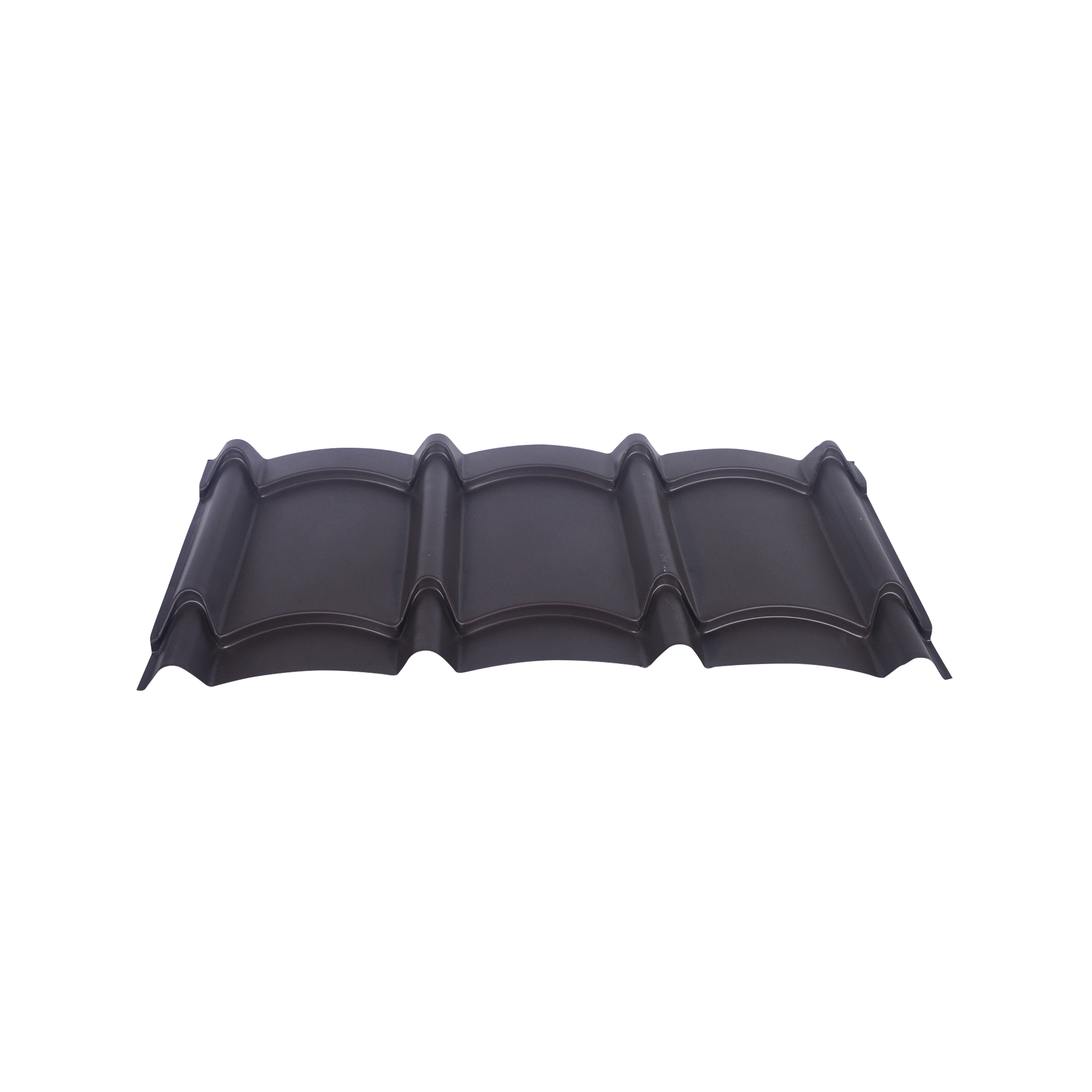

AMELDEK TILED ROOF
The AMELDEK tiled roof profile is an attractive, light weighted roofing solution which offers an aesthetic and traditional elegance to houses, resorts and commercial buildings.
The tile profile is available in seven different tile sizes in accordance with the tile length – varying from 6 – 16 inches. The roof support spacing would vary, depending on the selected tile size.
Specifications
Feeding width |
: 914 mm. |
|---|---|
Effective cover width |
: 730 mm. |
Rib height |
: 40 mm |
Tensile strength |
: G350 |
Coating class |
: AZ 150 & AZ 200 |
Recommended total coated thickness |
: 0.47mm, 0.40mm and 0.35mm. |
Standard tile length (7 sizes) |
: 6”, 8”, 9 “, 10” ,12 “,14 “ and 16” (inches).
|
Recommended screw specs |
: 65 mm (timber frame) / 68 mm (steel frame) |

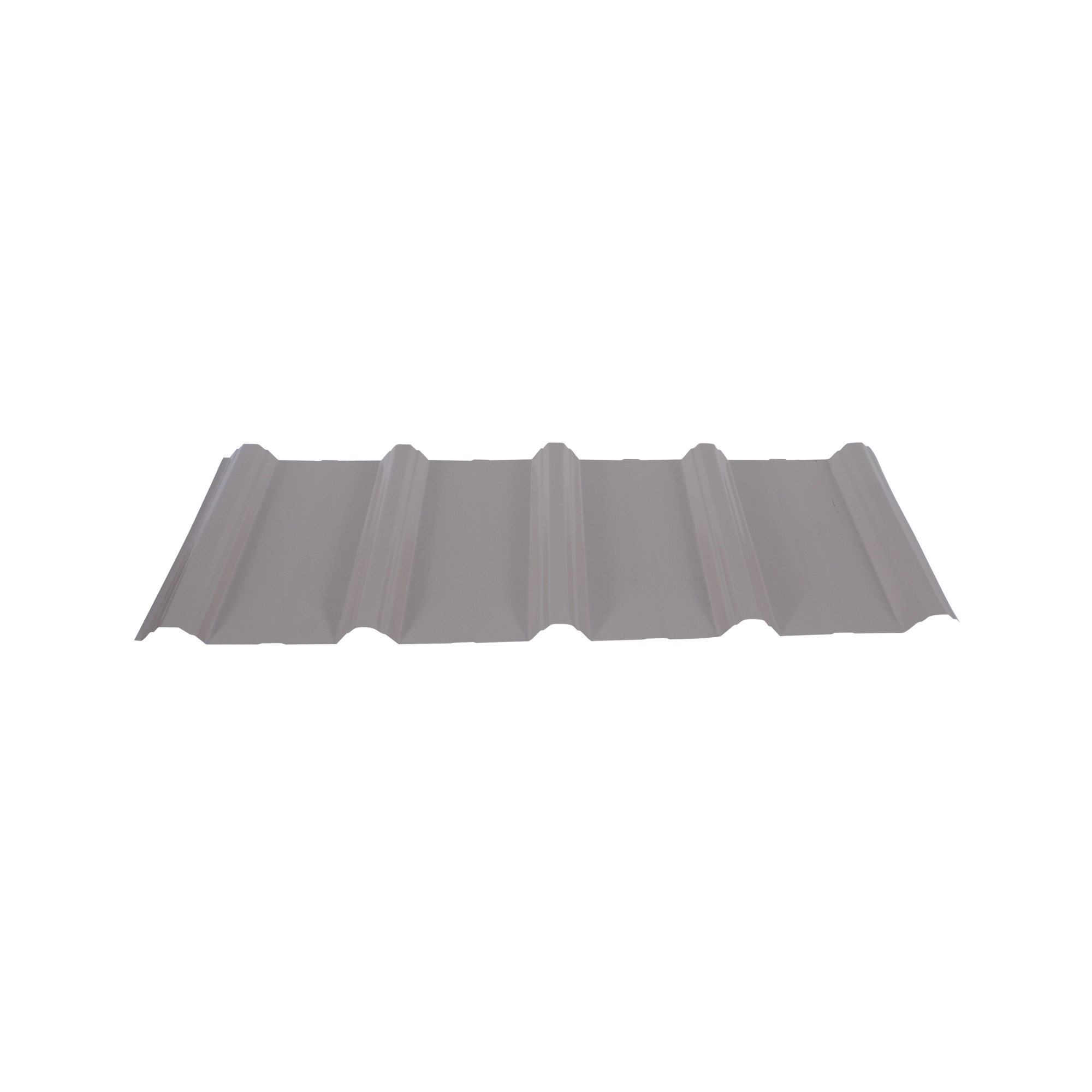

AMELDEK 762 ROOFING
The AMELDEK 762 roofing profile is a versatile roofing and cladding solution due to its dome shaped ridges which are double fluted on the sides of the ridge and has a single flute on the valley, thereby enhancing the strength of the roof. It is ideal for industrial and commercial applications.
Specifications
Feeding width |
: 914 mm / 940 mm. |
|---|---|
Effective cover width |
: 762 mm. |
Rib height |
: 24 mm (Nominal sheet depth). |
Tensile strength |
: G550 |
Coating class |
: AZ 150 |
Recommended total coated thickness |
: 0.47mm, 0.40mm. |
Recommended screw spec |
: 55mm (steel frame) |
Standard tile length (7 sizes) |
: 20ft – 40ft depending on length of the Profile diagram – (in mm). transport trailer. |

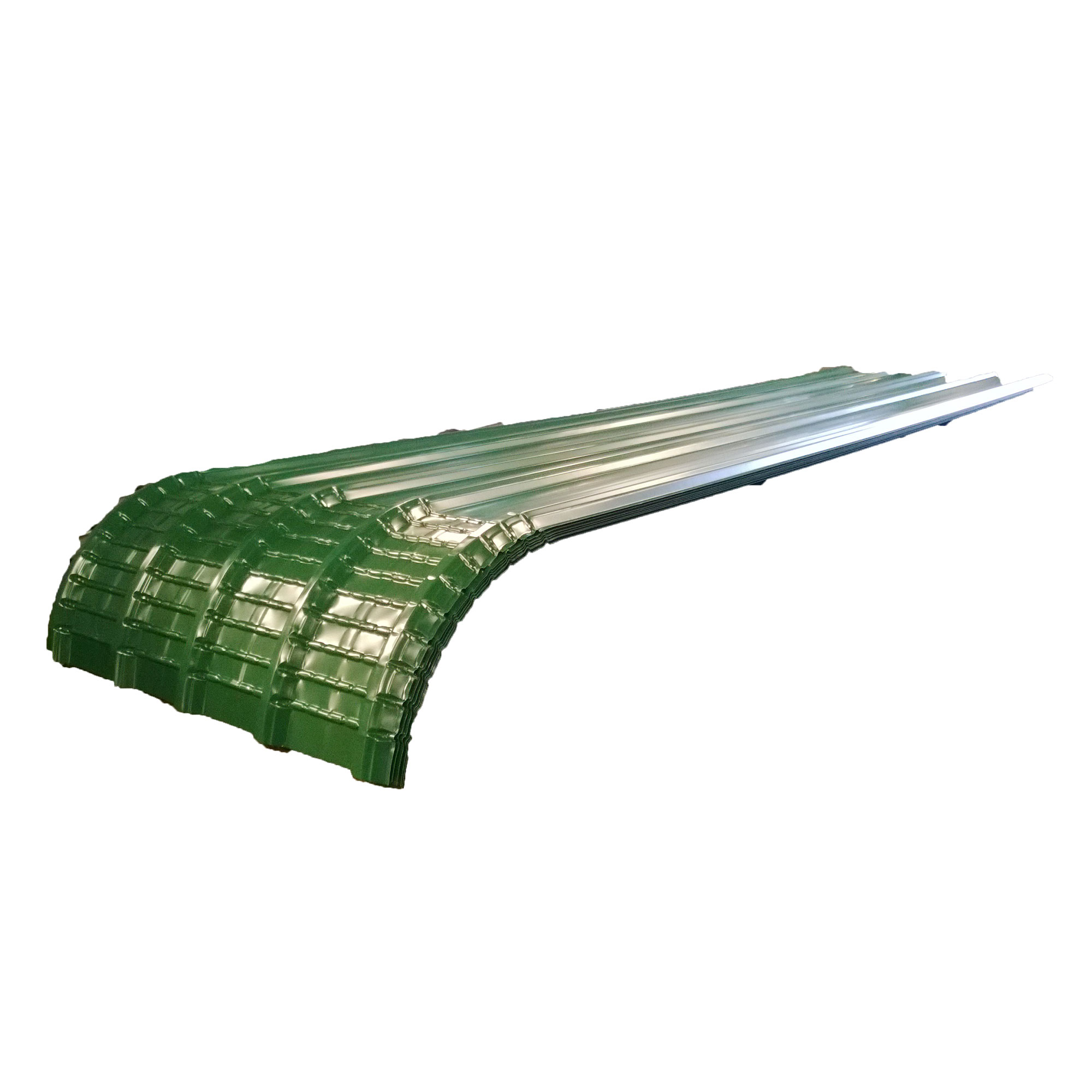

AMELDEK CRIMP CURVE ROOFING
The AMELDEK crimp curve roofing profile offers a modern visual appeal while being relatively economical due to its low maintenance cost. This profile is ideal for walkways, weather sheds, car parks, bus stops and a variety of other domestic, commercial and industrial applications.
Specifications
Feeding width |
: 914 mm. |
|---|---|
Effective cover width |
: 762 mm. |
Rib height |
: 24 mm (Nominal sheet depth). |
Tensile strength |
: G550 and G350 |
Coating class |
: AZ 150. |
Total coated thickness |
: 0.35mm, 0.40mm and 0.47mm. |
Recommended screw spec |
: 55 mm delta coated screw (Steel frame). 65 mm delta coated screw (Timber frame). |

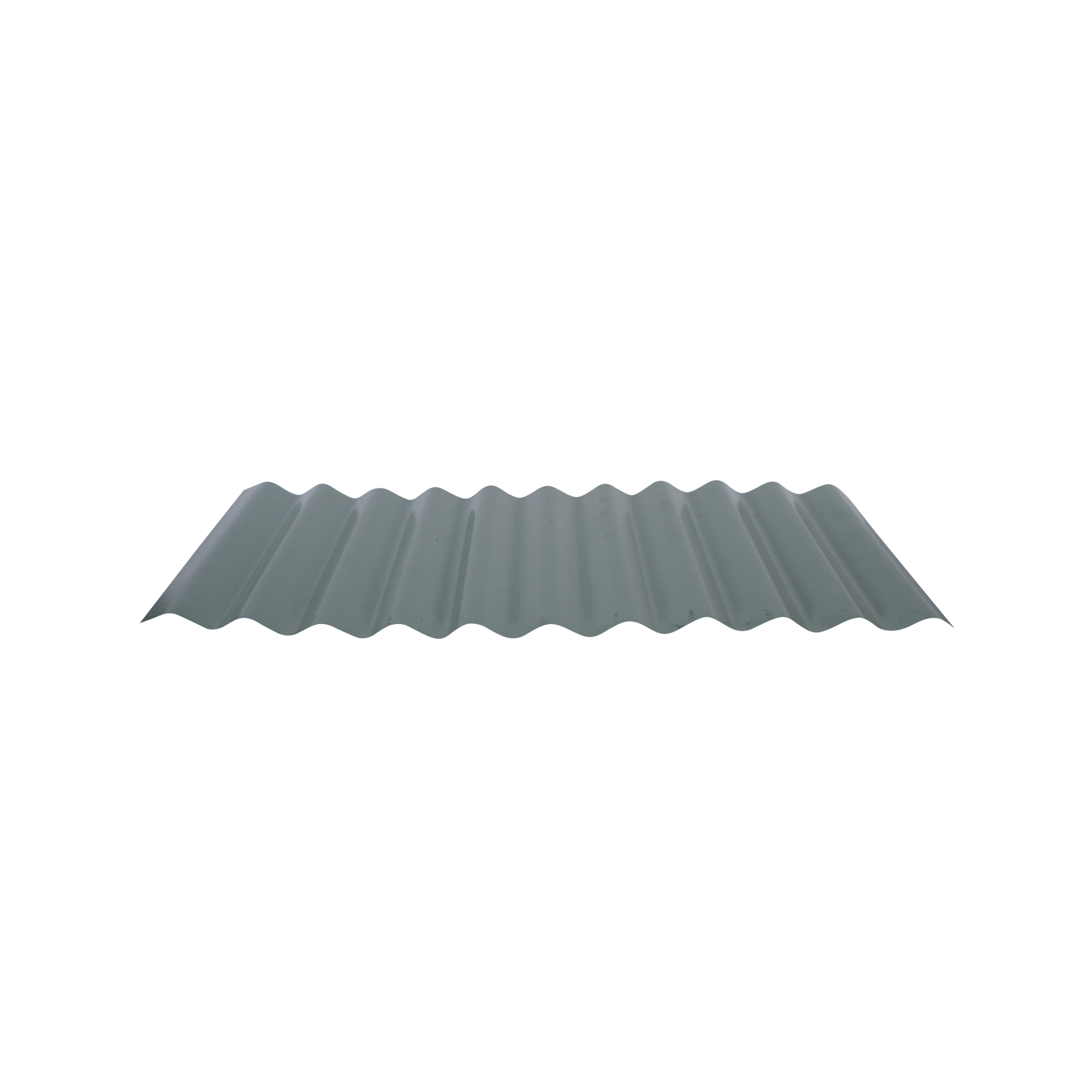

AMELDEK CORRUGATED
The AMELDEK Corrugated profile is a traditional and most economical option available in terms of installation, durability and strength. The roofing sheets can be profiled in both Galvanized and Zinc Aluminium Steel and can be used for both roofing and wall covering.
Specifications
Feeding width |
: 914 mm / 940 mm |
|---|---|
Effective cover width |
: 760 mm. |
Tensile strength |
: G550 |
Coating class |
: AZ 150. |
Recommended total coated thickness |
: 0.47 mm and 0.40 mm |
Maximum transportable length |
: 20ft – 40ft depending on length of transport trailer |
AMELDEK STRIP FORM
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
Specifications
Feeding width |
: 914 mm / 940 mm |
|---|---|
Effective cover width |
: 760 mm. |
Tensile strength |
: G550 |
Coating class |
: AZ 150. |
Recommended total coated thickness |
: 0.47 mm and 0.40 mm |
Maximum transportable length |
: 20ft – 40ft depending on length of transport trailer |
