Wall Cladding
Wall Clading
WALL CLADDING
The great effective cover width, lightweight, inventive appearance and low cost in maintenance of AMELDEK Cladding makes it the ideal option for wall and gate applications of warehouses and a variety of other industrial and commercial structures.

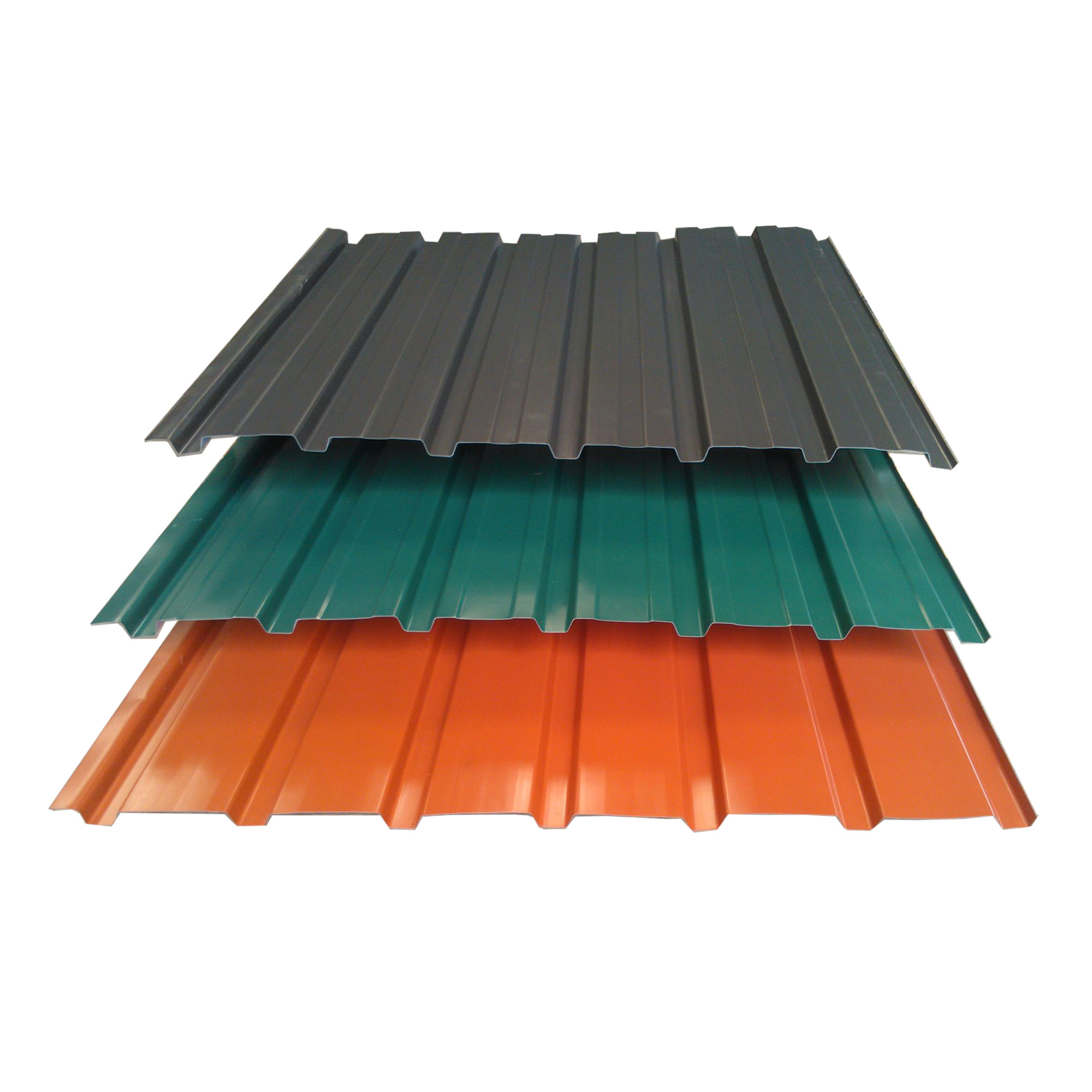

The AMELDEK cladding is available in three profiles in Non-color and Color bonded steel.
Specifications
Feeding width |
: 914 mm / 940mm. |
|---|---|
Effective width |
: 750 mm. |
Rib height |
: 15 mm (Nominal sheet depth). |
Tensile strength |
: G550 : G350. |
Coating class |
: AZ 150. |
Recommended total coated thickness |
: 0.47 mm, 0.40 mm and 0.35 mm |
Recommended screw spec |
: 20 mm delta coated screw. |
